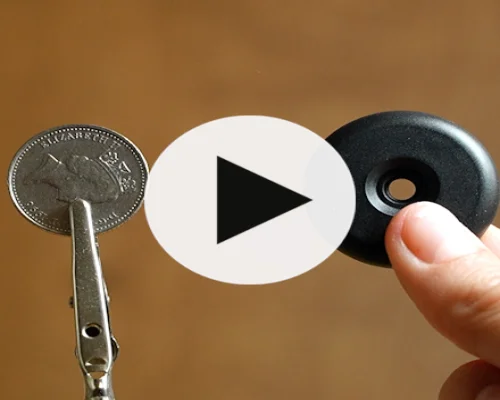

Industrial Tag NTAG213

This 34mm heavy duty, durable and waterproof industrial NFC tag is designed for the toughest environments. Contains the industry standard NTAG213 NFC chip from NXP. It's the strongest tag we sell and is used everywhere from oil refineries to shipping tankers. Nylon PA6 casing with optional backing adhesive.

Rated IP68 (full dust protection and suitable for continuous immersion in water). Can be used on both metal and non-metal surfaces. Tag diameter is 34mm. 6mm thick with a 4.5mm central hole.

Optional 3M 4604 adhesive has a slight padding to assist adhesion to rougher surfaces. Adhesive can be purchased loose so that you can attach as required or pre-fixed ready to peel and stick.

Supplied individually. We can supply these with a laser etched ID (with or without encoding) as a special order, minimum quantity 250 tags. Order online or contact us for information. Also available with alternative NFC chips and with ultra-high UV resistant nylon for high exposure exterior use cases.

On-Metal Tags Explained

Normal NFC tags do not work when placed directly onto metal surfaces. Therefore, when using NFC tags on metal you either need to create a gap of at least 0.5 cm between the tag and the metal or you can use a special tag - called an 'on-metal' tag - which has an additional ferrite barrier material between the NFC tag and the adhesive.

On-metal tags will work on both metal and non-metal surfaces. However, on-metal tag scan distances always tend to be slightly less than standard NFC tags so unless you need tags that will (or might) go on metal, we would strongly recommend that you go with standard tags.

Pricing

Seritag Product Code : ST714
Current Stock : 1,833 (need more?)We can typically supply additional stock of this product within 2 weeks. However, we very strongly advise you to contact us for exact production schedules for non-stock items before ordering.

Price per tag :
5 - 99$2.54
100 - 999$2.45
1,000 - 4,999$2.33
5,000 +Contact Us
(price excludes VAT)
(You can encode the tags yourself)
Total Cost :
$-

(excludes VAT)



Product Data

NFC Chip Genuine NXP NTAG213
Interface Specification ISO 14443A / 13.56 MHz
Total Memory 144 Bytes
Data Retention 10 years (estimated)
Metal Surfaces (?)Yes
Unique Print (?)ID Print Available
Real ScanStrength (?)31mm - 40mm
Delivery Format Single Units
Adhesive Optional, 3M4604 Permanent
Weather Resistance Very High
Thickness 6 mm
IP Rating IP68
Construction Material PA6 Industrial Nylon
Disc Size 34mm Circular
Water Rating Waterproof
Hole Size 4.5 mm
On-Metal ScanStrength (?)26mm - 30mm
Operating Temperature -25C to +85C
Availability Stock Item - Immediate Dispatch
